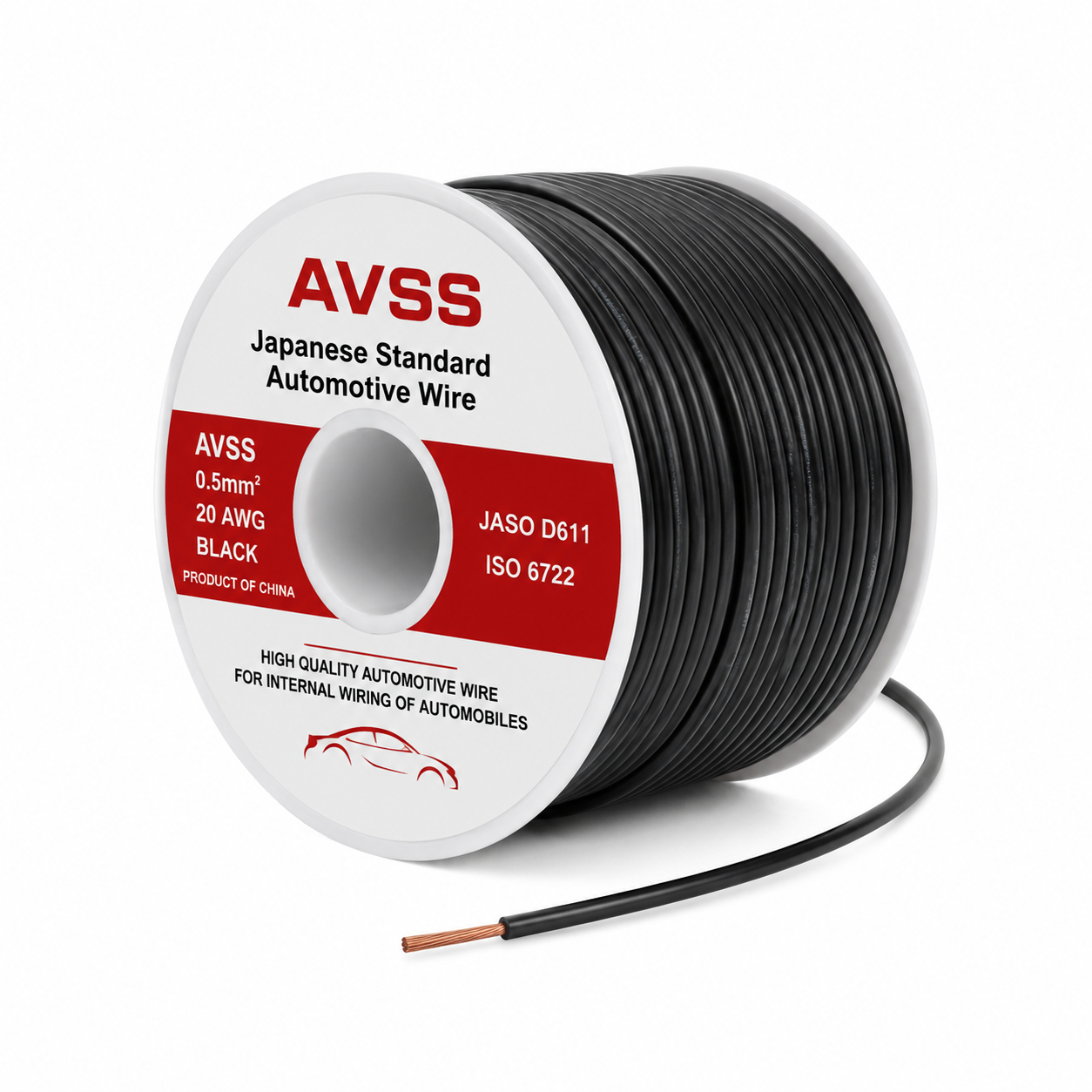

AVSS Japanese Standard Automotive Thin-wall Electric Wire 0.5 0.75 1mm OEM Cable Auto Wiring
AVSS Japanese Standard Automotive Thin-wall Electric Wire 0.5 0.75 1mm OEM Cable Auto Wiring
Item Number:AVSS
Categories
None
Description
Technical Data:
- Reference Standard: JASO D611
- Temperature Range: -40°C to +80°C (up to 100°C available upon request)
- Rated Voltage: 25V AC / 60V DC
- Conductor Material: Stranded Bare Copper / Tinned Copper
- Insulation Material: PVC (Polyvinyl Chloride)
Specification & Dimension Table:
| Nominal Size (mm²) | Conductor Construction (No./mm) | Conductor Outer Dia. (mm) | Insulation Thickness (mm) | Overall Outer Dia. (mm) | Max. Conductor Resistance at 20°C (Ω/km) |
|---|---|---|---|---|---|
| 0.3f | 19 / 0.16 | 0.80 | 0.30 | 1.40 | 48.8 |
| 0.5 | 7 / 0.32 | 1.00 | 0.30 | 1.60 | 32.7 |
| 0.5f | 19 / 0.19 | 1.00 | 0.30 | 1.60 | 36.7 |
| 0.75f | 19 / 0.23 | 1.20 | 0.30 | 1.80 | 24.4 |
| 0.85 | 19 / 0.24 | 1.20 | 0.30 | 1.80 | 20.8 |
| 1.25 | 19 / 0.29 | 1.50 | 0.30 | 2.10 | 14.3 |
| 1.25f | 37 / 0.21 | 1.50 | 0.30 | 2.10 | 14.7 |
| 2.0 | 37 / 0.26 | 1.90 | 0.40 | 2.70 | 8.81 |
| 2.0f | 37 / 0.26 | 1.90 | 0.40 | 2.70 | 8.81 |
(Note: "f" denotes highly flexible stranded conductor type)
Applications: Widely used for low-voltage circuits in automobiles, motorcycles, trucks, agricultural vehicles, and electric vehicles (EVs) for lighting, sensors, automotive instrumentation, and general circuit wiring.
