CIVUS Automotive Wire JASO Standard Thin Wall Japanese Standard Low Voltage Automotive Cable
CIVUS Automotive Wire JASO Standard Thin Wall Japanese Standard Low Voltage Automotive Cable
Item Number:CIVUS
Categories
None
Description
JASO Standard CIVUS Ultra-Thin Wall Automotive Wire & Sheathed Cable CIVUS wire is a highly specialized automotive cable designed for the modern automotive industry, especially where space-saving and weight reduction are critical. "C" stands for the compressed stranded copper conductor, which allows for a significantly smaller overall diameter without compromising electrical conductivity. Combined with its ultra-thin PVC insulation, CIVUS offers exceptional flexibility, making it the ideal choice for complex, high-density automotive wiring harnesses, sensors, and electronic control units.
- Space & Weight Saving: Ultra-thin wall insulation and compressed conductor design reduce bundle size by up to 30% compared to standard wires.
- High Conductivity: Premium bare copper / tinned copper strands ensure stable signal and power transmission.
- Extreme Durability: Excellent resistance to abrasion, oil, chemicals, and automotive fluids.
- Standard Compliance: Fully complies with JASO D 611 (Japanese Automotive Standards Organization) and RoHS/REACH environmental directives.
- Customization (For Sheathed Cables): Available in multi-core sheathed configurations for specific sensor or actuator applications.
Table 1: CIVUS Single Core Wire Specs
| Nominal Size (mm²) | Conductor Construction (No./mm) | Conductor Outer Dia. (mm) | Insulation Thickness (mm) | Overall Outer Dia. (mm) | Max. Conductor Resistance at 20°C (Ω/km) |
| 0.3f | 19 / 0.16 | 0.8 | 0.3 | 1.4 | 48.8 |
| 0.5 | 7 / 0.32 | 1 | 0.3 | 1.6 | 32.7 |
| 0.5f | 19 / 0.19 | 1 | 0.3 | 1.6 | 36.7 |
| 0.75f | 19 / 0.23 | 1.2 | 0.3 | 1.8 | 24.4 |
| 0.85 | 19 / 0.24 | 1.2 | 0.3 | 1.8 | 20.8 |
| 1.25 | 19 / 0.29 | 1.5 | 0.3 | 2.1 | 14.3 |
| 1.25f | 37 / 0.21 | 1.5 | 0.3 | 2.1 | 14.7 |
| 2 | 37 / 0.26 | 1.9 | 0.4 | 2.7 | 8.81 |
| 2.0f | 37 / 0.26 | 1.9 | 0.4 | 2.7 | 8.81 |

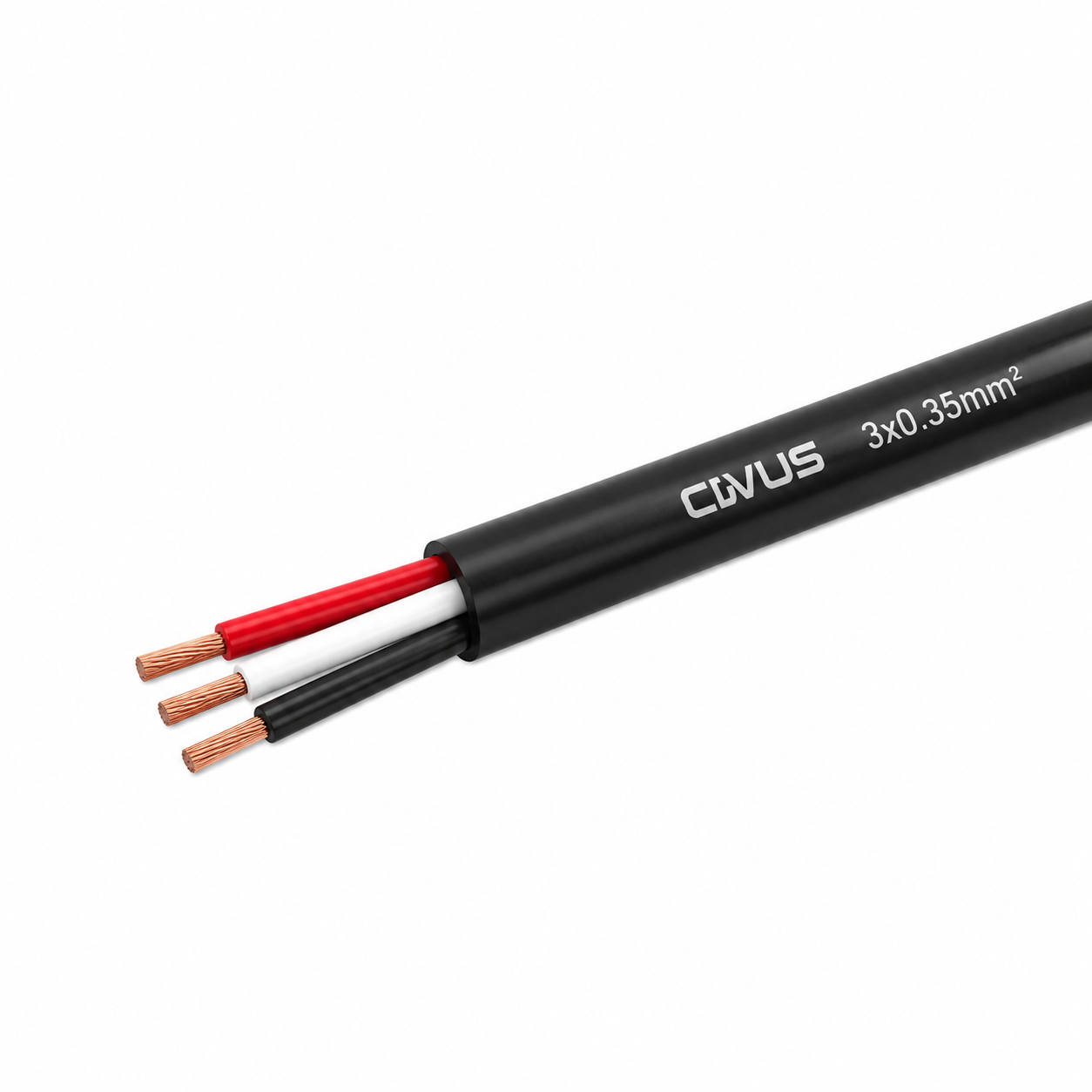

Table 2: CIVUS Multi-Core Sheathed Cable
| Core Configuration | Inner Core Type | Jacket Thickness ( mm) | Approx. Overall Dia. ( mm) | Core Colors | Application |
| 2 x 0.22 mm² | CIVUS 0.22 | 0.4 | 2.8 | Custom | ABS Sensors, Door Wiring |
| 3 x 0.22 mm² | CIVUS 0.22 | 0.4 | 3 | Custom | Mirrors, Small Motors |
| 2 x 0.35 mm² | CIVUS 0.35 | 0.4 | 3.1 | Custom | Lighting, Signal control |
| 4 x 0.35 mm² | CIVUS 0.35 | 0.45 | 3.65 | Custom | Complex switch cables |
