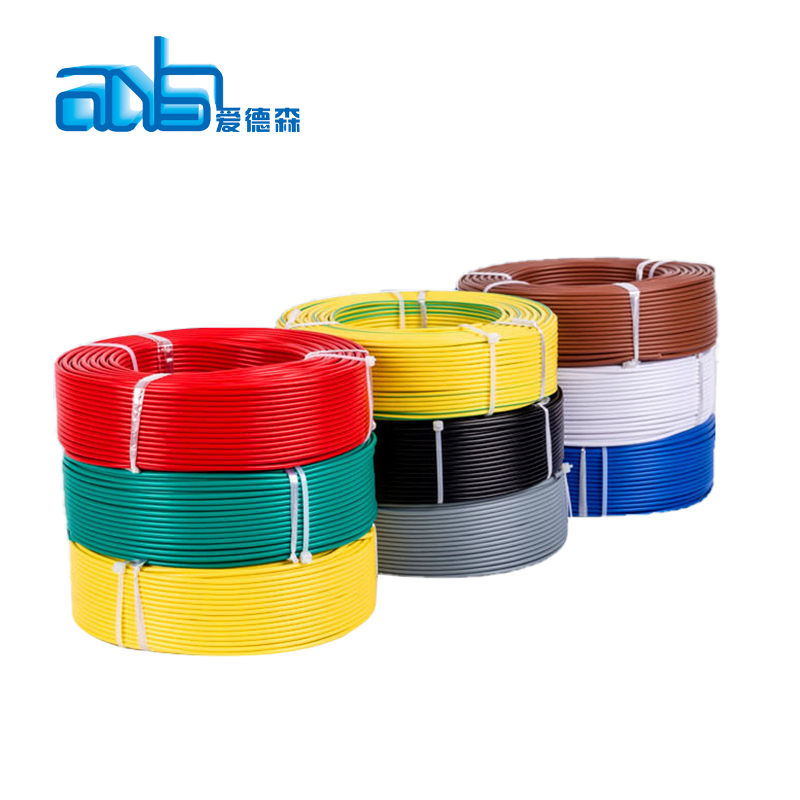

What is FLRY Wire
Haiyan ADS Special Cable produce FLRY series wire for many years, FLRY wire is German Standard electrical wire for the single conductor with PVC insulation, High-conductivity bare copper wire featuring an asymmetrical stranded construction (Type B), which provides excellent flexibility and mechanical strength.，Engineered to strictly comply with German standard DIN 72551 and international standard ISO 6722. The product is fully RoHS compliant, ensuring environmental safety and reliable performance.
Table 1: FLRY-A Specification (Symmetrical Conductor)
| Nominal Cross-Section (mm²) | Conductor Construction (No./mm) | Max. Conductor Resistance at 20°C (Ω/km) | Nominal Insulation Thickness (mm) | Max. Outer Diameter (mm) |
|---|---|---|---|---|
| 0.35 | 7 / 0.27 | 52.0 | 0.20 | 1.30 |
| 0.50 | 19 / 0.19 | 37.1 | 0.22 | 1.60 |
| 0.75 | 19 / 0.23 | 24.7 | 0.24 | 1.90 |
| 1.00 | 19 / 0.26 | 18.5 | 0.24 | 2.10 |
| 1.50 | 19 / 0.32 | 12.7 | 0.24 | 2.40 |
Note: Data complies with DIN 72551 / ISO 6722 standards.
Table 2: FLRY-B Specification (Asymmetrical Conductor)
| Nominal Cross-Section (mm²) | Conductor Construction (No./mm) | Max. Conductor Resistance at 20°C (Ω/km) | Nominal Insulation Thickness (mm) | Max. Outer Diameter (mm) |
|---|---|---|---|---|
| 0.35 | 12 / 0.21 | 52.0 | 0.20 | 1.40 |
| 0.50 | 16 / 0.21 | 37.1 | 0.22 | 1.60 |
| 0.75 | 24 / 0.21 | 24.7 | 0.24 | 1.90 |
| 1.00 | 32 / 0.21 | 18.5 | 0.24 | 2.10 |
| 1.50 | 30 / 0.26 | 12.7 | 0.24 | 2.40 |
Note: Data complies with DIN 72551 / ISO 6722 standards.
Main Applications:
Widely utilized in the manufacturing of automotive wiring harnesses. It is the ideal choice for internal cabin wiring, instrument panels, lighting systems, sensor connections, and other low-voltage electronic modules in passenger cars, commercial vehicles, and motorcycles.
