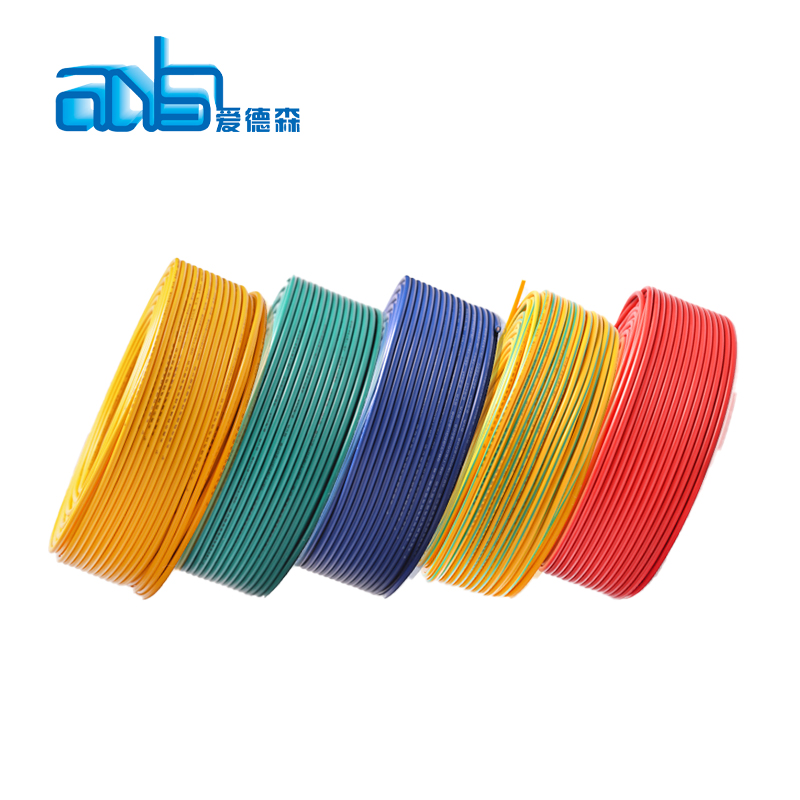

GPT Automotive Primary Wire PVC Insulated Copper Auto Cable
Categories
None
Description
Product Overview
GPT (General Purpose Thermoplastic) automotive wire is the most common standard cable used for automotive electrical systems. Manufactured strictly according to the SAE J1128 standard, our GPT wire features a highly conductive stranded bare copper core and a durable PVC jacket. It offers excellent flexibility and reliable performance, making it the ideal choice for automotive aftermarket, OEM applications, and general 12V/24V circuit wiring.
Typical Applications
- Automotive Wiring: General electrical circuits in cars, trucks, trailers, and RVs.
- Marine & Powersports: Interior wiring for boats, ATVs, and motorcycles.
- Custom Harnesses: Perfect for DIY automotive wire harnesses and aftermarket accessories installations (lights, radios, horns).
- Note: GPT wire is recommended for use in interior applications or areas protected from extreme environmental conditions.
Technical Specifications
- Reference Standard: SAE J1128
- Conductor Material: Stranded Bare Copper (Tinned copper available upon request)
- Insulation Material: Premium Polyvinyl Chloride (PVC)
- Temperature Rating: -40°C to +80°C (-40°F to 176°F)
- Voltage Rating: 60V DC / 25V AC
- Characteristics: Excellent resistance to oil, grease, acids, and abrasion. Flame retardant and RoHS compliant.
- Color Availability: Black, Red, Yellow, Blue, Green, White, Orange, Brown (Striped colors can be customized).
| AWG Size | Conductor Stranding (No./mm) | Nom. Insulation Thickness (mm) | Nom. Overall Diameter (O.D.) (mm) | Max. Conductor Resistance at 20°C(Ω/km) |
| 22 AWG | 7 / 0.25 | 0.58 | 1.9 | 54.4 |
| 20 AWG | 7 / 0.32 | 0.58 | 2.1 | 34.1 |
| 18 AWG | 16 / 0.25 | 0.58 | 2.3 | 21.4 |
| 16 AWG | 19 / 0.29 | 0.58 | 2.6 | 14.3 |
| 14 AWG | 19 / 0.36 | 0.58 | 3 | 8.96 |
| 12 AWG | 19 / 0.45 | 0.66 | 3.6 | 5.64 |
| 10 AWG | 19 / 0.57 | 0.78 | 4.5 | 3.55 |
| 8 AWG | 19 / 0.71 | 0.94 | 5.5 | 2.23 |
(Note: Custom stranding and specifications can be manufactured according to your specific requirements.)
Why Choose Our GPT Auto Wire?
- High Conductivity: 99.9% pure oxygen-free copper ensures low resistance and stable power transmission.
- Easy to Process: Uniform insulation thickness allows for easy stripping, cutting, and terminating during wire harness assembly.
- Quality Guaranteed: 100% tested before shipment to ensure compliance with SAE international standards.
- Flexible MOQ: We support reasonable Minimum Order Quantities for wholesalers and harness factories worldwide.
