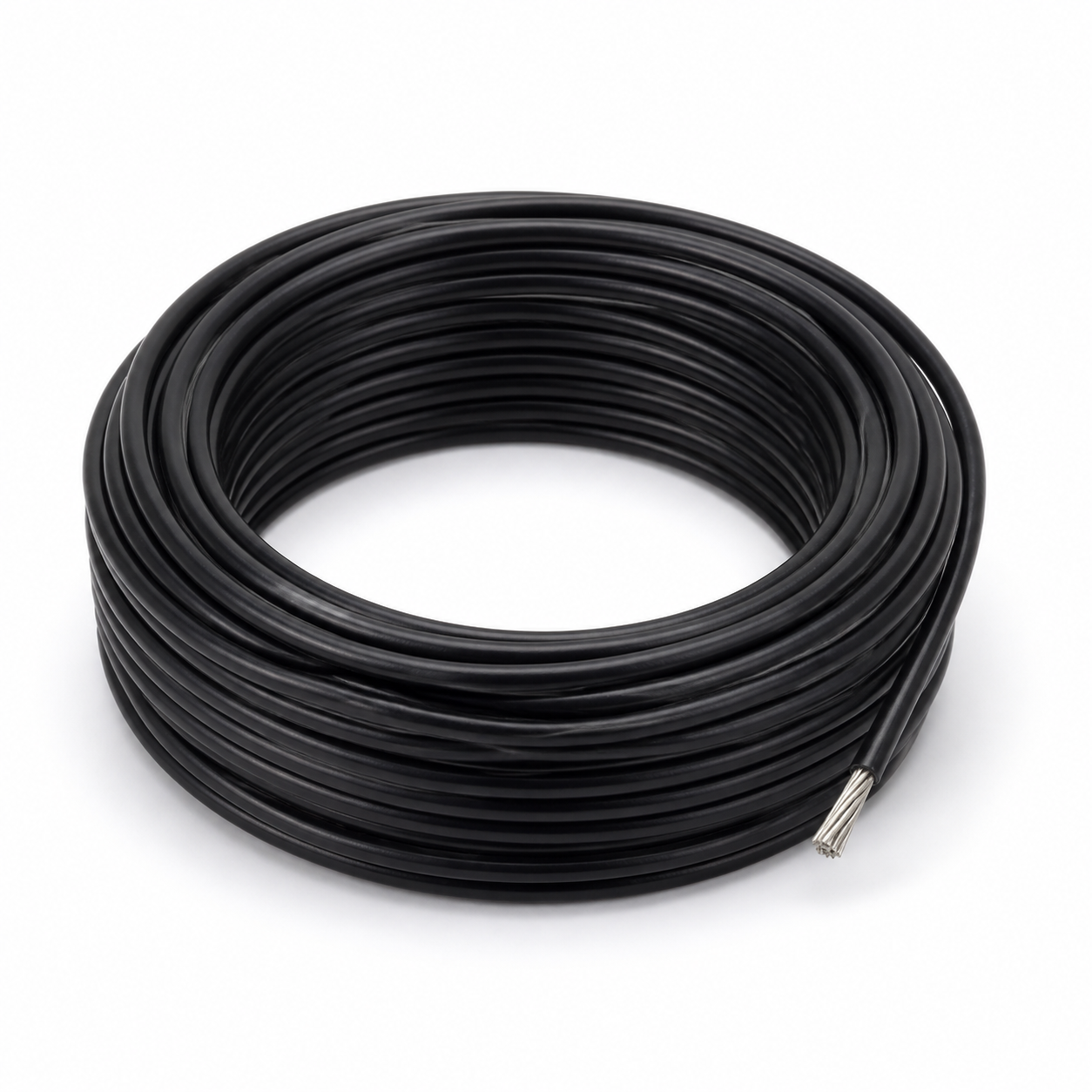

UL1007 Hook Up Wire 300V 80C Tinned Copper PVC Insulated Electronic Wire
UL1007 Hook Up Wire 300V 80C Tinned Copper PVC Insulated Electronic Wire
Item Number:UL1007
Categories
None
Description
Premium UL1007 Hook-Up Wire - Reliable Internal Wiring Solution Our UL1007 Hook-Up Wire is a high-performance, PVC-insulated electronic wire designed for general-purpose internal wiring of electronic and electrical equipment. Manufactured strictly according to UL758 and UL1581 standards, it features high-purity tinned or bare copper conductors, ensuring excellent electrical conductivity and corrosion resistance.
Rated at 80°C and 300V, this flexible AWG wire is widely used in home appliances, lighting fixtures, computers, and motor leads. Fully compliant with RoHS and REACH directives, guaranteeing environmental safety and premium quality for your projects.
- High-Quality Conductor: Solid or stranded, tinned or bare copper (30 AWG - 16 AWG) for optimal conductivity and easy soldering.
- Durable Insulation: Premium color-coded PVC (Polyvinyl Chloride) insulation, offering excellent resistance to moisture, acids, alkalis, and oils.
- Standard Compliance: Passes UL VW-1 and CSA FT1 vertical flame test, ensuring high fire safety.
- Temperature & Voltage Rating: Rated for use up to 80°C and 300 Volts.
- Customization (OEM/ODM): Available in various colors (Black, Red, Yellow, Green, Blue, White, etc.) and custom cutting/stripping services upon request.
Wide Range of Applications: The UL1007 PVC electrical wire is the industry standard for internal wiring in:
- Home Appliances (Refrigerators, Microwaves, Air Conditioners)
- Consumer Electronics & Computers
- Lighting Fixtures and LED components
- Motor leads and Transformer wiring
- Sensors and Industrial Control Panels
Technical Specifications Table
| Parameter / Standard | Specification Details |
| Model | UL1007 Hook-Up Wire / AWM 1007 |
| Rated Voltage | 300V |
| Rated Temperature | 80°C |
| Conductor Material | Stranded or Solid Tinned / Bare Copper |
| Insulation Material | PVC (Polyvinyl Chloride) |
| AWG Range | 30 AWG, 28, 26, 24, 22, 20, 18, 16 AWG |
| Testing Standard | UL758, UL1581, CSA C22.2 No.210.2 |
| Flame Retardant Test | UL VW-1 & CSA FT1 |
| Certification | UL, RoHS, REACH |
| Colors Available | Red, Black, White, Yellow, Green, Blue, Brown, Grey, etc. |
Detailed Size Chart
| AWG Size | Conductor Construction (No./mm) | Insulation Thickness (mm) | Overall Diameter (mm) | Max. Conductor Resistance (Ω/km at 20°C) |
| 30 AWG | 7 / 0.10 | 0.41 | 1.10 ± 0.10 | 381 |
| 28 AWG | 7 / 0.127 | 0.41 | 1.20 ± 0.10 | 239 |
| 26 AWG | 7 / 0.16 | 0.41 | 1.30 ± 0.10 | 150 |
| 24 AWG | 11 / 0.16 | 0.41 | 1.40 ± 0.10 | 94.2 |
| 22 AWG | 17 / 0.16 | 0.41 | 1.60 ± 0.10 | 59.4 |
| 20 AWG | 26 / 0.16 | 0.41 | 1.80 ± 0.10 | 36.7 |
| 18 AWG | 41/ 0.16 | 0.41 | 2.10 ± 0.10 | 23.2 |
| 16 AWG | 26 / 0.254 | 0.41 | 2.40 ± 0.10 | 14.6 |
Packaging & Delivery:
- Standard Packing: 305 meters/roll (1000 ft/roll) or 610 meters/roll, packed in strong export cartons.
- Custom Packaging: Spool packing, shrink wrap, or OEM labels available upon request.
- Lead Time: 7-15 days depending on order quantity. Fast dispatch for standard sizes in stock.
Why Choose Us?
- Direct Factory Price: Cost-effective solutions without middleman markups.
- Strict Quality Control: 100% tested before shipment.
- Low MOQ: Small orders accepted to support your business.
- 24/7 Customer Service: Prompt response to technical and pricing inquiries.
