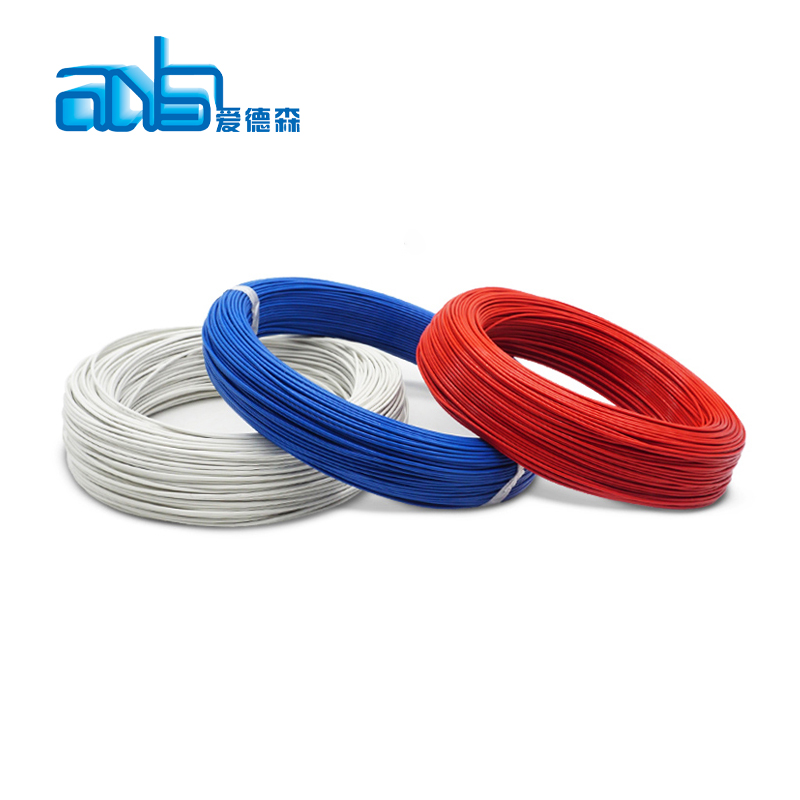

UL3266 XLPE Insulated Cross-Linked Polyethylene Heat Resistant Halogen-Free Wire
UL3266 XLPE Insulated Cross-Linked Polyethylene Heat Resistant Halogen-Free Wire
Item Number:UL3266
Categories
None
Description
Manufactured to strict UL 758 standards, our UL3266 XLPE Hook-Up Wire is engineered for superior performance in high-temperature environments. Featuring high-purity tinned or bare copper conductors and premium Cross-Linked Polyethylene (XLPE) insulation, this wire offers outstanding thermal stability, excellent electrical properties, and high resistance to abrasion, chemicals, and moisture.
Rated for 125℃ and 300V, the UL3266 wire is a reliable, halogen-free, and eco-friendly (RoHS & REACH compliant) solution widely used for the internal wiring of electrical appliances, lighting fixtures, computers, and motor leads. Whether you need standard sizes (from 32 AWG to 10 AWG) or custom specifications, we provide factory-direct pricing and fast global shipping.
| Specification (参数项目) | Detail (详细说明) |
| Model (型号) | UL 3266 |
| Standard (认证标准) | UL 758, Appliance Wiring Material (AWM) |
| Conductor Material (导体材质) | Solid or Stranded, Tinned / Bare Copper (镀锡铜/裸铜) |
| Insulation Material (绝缘材质) | XLPE (Cross-Linked Polyethylene - 交联聚乙烯) |
| Rated Temperature (额定温度) | 125℃ |
| Rated Voltage (额定电压) | 300V |
| AWG Range (线规范围) | 32 AWG ~ 10 AWG |
| Flammability Test (阻燃等级) | Passes UL VW-1 & CSA FT1 vertical flame test |
| Available Colors (可选颜色) | Black, Red, White, Blue, Green, Yellow, Brown, Grey, Orange, Violet, Green/Yellow (可定制) |
| Environmental (环保认证) | RoHS, REACH Compliant, Halogen-Free (无卤环保) |
| Testing Voltage (测试电压) | 2000V |
Typical Size Chart
| AWG (线规) | No. of Strands / Wire Dia (股数/线径 mm) | Insulation Thickness (绝缘厚度 mm) | Overall Diameter (完成外径 mm) | Max. Resistance at 20℃ (最大电阻 Ω/km) |
| 26 | 7 / 0.16 | 0.38 | 1.3 | 150 |
| 24 | 11 / 0.16 | 0.38 | 1.45 | 94.2 |
| 22 | 17 / 0.16 | 0.38 | 1.6 | 59.4 |
| 20 | 21 / 0.178 | 0.38 | 1.8 | 36.7 |
| 18 | 34 / 0.178 | 0.38 | 2.1 | 23.2 |
| 16 | 26 / 0.25 | 0.38 | 2.4 | 14.6 |
Applications of UL3266 XLPE Wire Due to its robust thermal and electrical properties, the UL3266 wire is suitable for a wide variety of applications:
- Internal wiring of electronic and electrical equipment.
- Home appliances (microwaves, ovens, air conditioners).
- Lighting fixtures and LED drivers.
- Motor leads and transformers.
- Automotive internal circuitry.
- Sensors and medical devices.
Why Choose Us?
- Direct Manufacturer: Competitive factory wholesale prices.
- Quality Assurance: ISO9001 certified factory with strict QC systems.
- Customization: Custom AWG, colors, lengths, and OEM/ODM services available.
- Fast Delivery: High production capacity ensures short lead times.
- Free Samples: Contact us today for free testing samples!
